What is a PCE Macromonomer?
A PCE macromonomer is a polyether-based raw material used to produce polycarboxylate ether (PCE) superplasticizers. Each macromonomer molecule has two parts: a reactive unsaturated end group, usually a double bond, and a long polyethylene glycol (polyoxyethylene) chain. When the macromonomer is copolymerized with unsaturated acids such as acrylic acid, the polyether chains become the side chains of the finished PCE, and the acid units form the charged backbone. The result is the comb-shaped polymer behind modern high-range water reducers for concrete and mortar.
The macromonomer is the largest component by weight in most PCE formulations, so its quality has a direct effect on the water reduction, slump retention, and batch-to-batch consistency of the final admixture. A PCE producer that changes macromonomer supplier, or receives a lot with different reactivity, can see different concrete performance even when the recipe stays the same. For this reason, macromonomers are usually purchased against detailed specifications rather than as generic chemicals.
Main Types of PCE Macromonomers
The industry names macromonomers by the chemistry of their unsaturated head group. Ester-type macromonomers, typically methoxy polyethylene glycol methacrylate (MPEG-MA), were used in early PCE generations. Ether-type macromonomers later became the mainstream choice in many markets because the ether bond between the side chain and the backbone resists hydrolysis, and because they can be copolymerized directly without a separate esterification step at the PCE plant.
| Common Name | Chemical Description | Linkage Type | Typical Notes |
|---|---|---|---|
| APEG | Allyl alcohol polyoxyethylene ether | Ether | Early ether type; lower reactivity of the allyl group limits conversion |
| HPEG | Methallyl alcohol polyoxyethylene ether | Ether | Widely used; common molecular weights around 2400 |
| TPEG / IPEG | Isoprenol (3-methyl-3-buten-1-ol) polyoxyethylene ether | Ether | Widely used; good reactivity with acrylic acid; often 2400 or 3000 |

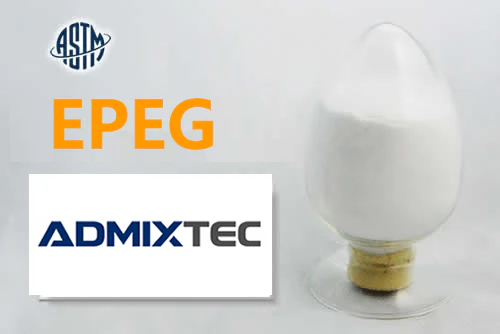

| VPEG / EPEG | Vinyl ether polyoxyethylene ethers (e.g., based on 4-hydroxybutyl vinyl ether or ethylene glycol vinyl ether) | Ether | Newer generation; suited to low-temperature polymerization; acid-sensitive and needs pH control |
| MPEG-MA | Methoxy polyethylene glycol methacrylate | Ester | Classic ester type; ester bond can hydrolyze in alkaline cement pore solution |
Names vary between regions and suppliers, and the same abbreviation does not always describe an identical product. Buyers should confirm the actual starter alcohol, molecular weight, and specification sheet instead of relying on the trade abbreviation alone.
How PCE Macromonomers Work in Superplasticizers
A macromonomer does not act in concrete by itself. Its job is to give the finished PCE polymer its side chains, and those side chains control how the admixture disperses cement particles.
Building the Comb Structure
During polymerization at the PCE plant, the double bond of the macromonomer joins the growing polymer chain together with acid monomers. The polyether part does not react and remains attached as a pendant side chain. The final polymer therefore carries a negatively charged backbone, which adsorbs onto positively charged sites on cement grains, and many neutral polyether side chains that extend into the surrounding water.
Steric Hindrance and Water Reduction
Older superplasticizers such as naphthalene and melamine types disperse cement mainly through electrostatic repulsion. PCE adds a stronger effect called steric hindrance. The extended polyether side chains form a physical layer around each cement particle, which keeps neighboring particles from flocculating. Dispersed particles release water that would otherwise be trapped in flocs, so the concrete can reach the same workability with less mixing water. This is why PCE-based products can achieve higher water reduction at lower dosage than earlier chemistries.
How Macromonomer Properties Shape Admixture Performance
Side chain length is set by the molecular weight of the macromonomer. Longer side chains generally give a thicker steric layer, while shorter side chains allow more acid groups per unit weight and can change adsorption speed. The ratio of macromonomer to acid monomer, chosen by the PCE formulator, then determines charge density. Together these factors decide whether a PCE leans toward fast water reduction, slump retention, viscosity reduction, or clay tolerance.
The head group affects how efficiently the macromonomer is built into the polymer. A macromonomer with low double bond content or poor reactivity leaves more unreacted material in the final product. That unreacted polyether adds weight without contributing to dispersion, which lowers the effective solids and makes performance less predictable.
| Macromonomer Property | Effect on the Finished PCE |
|---|---|
| Molecular weight (side chain length) | Influences steric layer thickness, adsorption behavior, and the balance between water reduction and slump retention |
| Double bond retention | Determines how much of the macromonomer can enter the polymer; low values reduce conversion |
| Molecular weight distribution | A narrow distribution gives more uniform side chains and more consistent batches |
| Polyethylene glycol (PEG) byproduct content | PEG cannot polymerize and acts as an inert diluent in the admixture |
| Head group chemistry | Sets reactivity, required polymerization temperature, and hydrolysis stability of the side chain link |
How to Choose the Right PCE Macromonomer
Choosing a macromonomer starts with the target admixture. A producer making high water-reduction PCE for ready-mix concrete may choose differently from one making slump-retention grades, precast products, or self-compacting concrete. The production process at the PCE plant also matters, because each macromonomer type works best within certain temperature and initiator conditions.
Match the Type to Your Process
HPEG and TPEG are well established and supported by a large body of formulation experience, which makes them a practical choice for plants with standard heated reactors. VPEG and EPEG types are often chosen by producers who want to polymerize at lower temperatures and reduce energy use, but vinyl ether groups degrade under acidic conditions, so the plant needs good control of pH and feeding order. Ester-type MPEG-MA remains in use for specific product designs, particularly where formulators want a side chain linkage that behaves differently in alkaline conditions. Switching between types usually requires reformulation and trial batches, not a direct one-to-one substitution.
Check the Key Quality Parameters
A reliable supplier should provide a certificate of analysis for each lot. The parameters below are the ones most PCE formulators review. Acceptable ranges depend on the grade and the buyer's recipe, so they should be agreed in the purchase specification.
| Parameter | Why It Matters |
|---|---|
| Hydroxyl value | Used to calculate actual molecular weight and confirm the grade |
| Double bond retention (unsaturation) | Indicates how much material can take part in polymerization |
| PEG content | Higher PEG means more inert material in the finished admixture |
| Molecular weight distribution (PDI) | Reflects side chain uniformity and lot consistency |
| pH (1% aqueous solution) | Affects stability during storage and polymerization, especially for vinyl ether types |
| Water content | Affects dosing accuracy and solids calculation |
| Color and appearance | A quick indicator of oxidation or process issues |
Evaluate Consistency and Supply Conditions
For a PCE producer, the variation between lots often matters more than the value on any single certificate. Ask the supplier for data across several consecutive lots and run your own polymerization and concrete trials before approving a source. Packaging and logistics also deserve attention. Most grades are solid flakes at room temperature and are supplied in bags, while some plants receive molten product in heated tankers. Flakes should be kept dry, sealed, and away from heat to prevent caking and moisture uptake. Molten storage benefits from controlled temperature and limited air exposure to reduce oxidation and color change.
Request Proper Documentation
Before purchase, request the technical data sheet, safety data sheet, and lot-specific certificate of analysis. If your market or customers require particular test methods, regulatory registrations, or third-party certifications, state these requirements in the inquiry and ask the supplier to provide supporting documents. ADMIXTEC's technical team can share grade specifications and discuss sample evaluation for your process.
FAQ
Is a PCE macromonomer the same as a polycarboxylate superplasticizer?
No. The macromonomer is a raw material. The superplasticizer is the polymer produced after the macromonomer is copolymerized with acid monomers and then neutralized and formulated. Macromonomers are not added to concrete directly.
What is the difference between HPEG and TPEG?
Both are ether-type macromonomers with polyethylene glycol side chains. They differ in the starter alcohol: HPEG is based on methallyl alcohol, while TPEG is based on isoprenol. This changes the structure near the double bond and therefore the reactivity during polymerization. Both are widely used, and the better choice depends on the producer's recipe and process conditions.
Which molecular weight should I choose?
Molecular weights around 2400 are common for general-purpose ether-type PCE, and 3000 or higher grades are used when formulators want longer side chains. The right choice depends on the target performance, cement types in your market, and your existing formulations. Trial polymerizations and concrete tests are the reliable way to decide.
Why are VPEG and EPEG described as acid-sensitive?
Their vinyl ether head group can break down in acidic conditions. Because PCE polymerization involves acid monomers, producers using these grades control pH, temperature, and feeding sequence more carefully than with HPEG or TPEG.
How should PCE macromonomers be stored?
Solid flakes should be stored in sealed packaging in a cool, dry, ventilated area, away from direct sunlight and heat sources. Opened bags should be resealed to limit moisture uptake. Follow the storage conditions and shelf life stated on the supplier's technical data sheet and safety data sheet.
Can I switch macromonomer suppliers without changing my formula?
It is possible but not guaranteed. Differences in double bond retention, PEG content, and molecular weight distribution can change conversion and concrete performance. Run comparative lab polymerizations and concrete tests before switching suppliers in production.
